Fundamentals

Joints

A joint or node is where the different members of a truss or spatial structure meet each other. For a truss this location is also called a “panel point”.

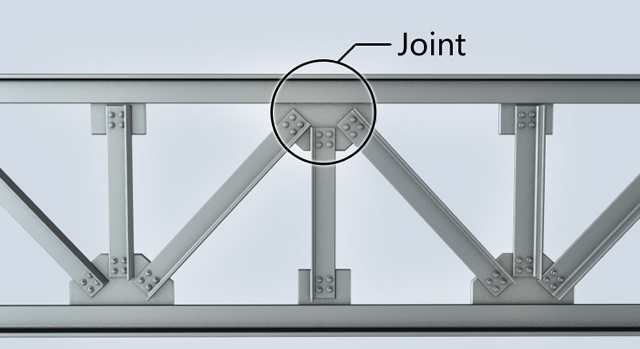

Joint (Node) in A Truss

Joint (Node) in a Truss

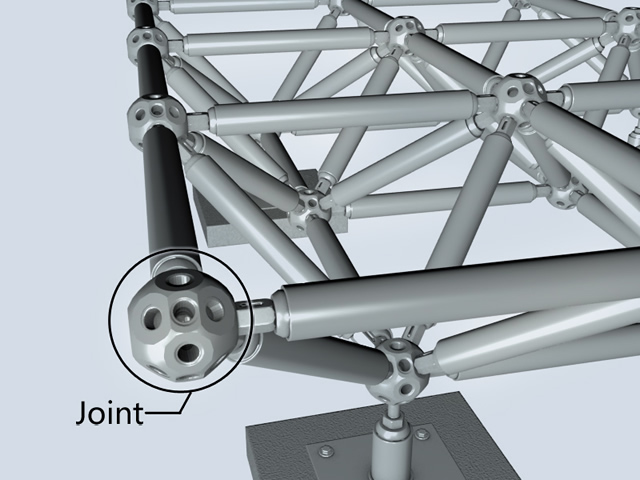

Joint (Node) in A Spatial Structure

Joint (Node) in a Spatial Structure
